Rebar thread rolling machine Z28-80 hydraulic machine
Short Description:
Our high-precision Thread Rolling Machine is engineered for efficient, cold-forming production of external threads on bolts, screws, studs, and other fasteners. Utilizing advanced roll-forming technology, it delivers superior thread quality with excellent surface finish, enhanced grain structure, and increased tensile strength—without material waste.
Key Features:
- Robust cast-iron frame for vibration-free, stable operation
- Precision-ground thread rolls with quick-change system
- Adjustable rolling force and speed for various materials and thread specs
- PLC-controlled automation for consistent, high-speed production
- Compliant with ISO and DIN thread standards
Ideal for automotive, construction, machinery, and hardware industries, our Thread Rolling Machine ensures high productivity, low maintenance, and long service life. Custom configurations available to meet your specific threading requirements.
Technical parameters:
| Pressure of Roller max. | 150KN | Rotary Speed of Main Shaft | 36,47,60,78(r/min) |
| Working Dia | 4-48mm | Feed Speed of Movable shaft | 5mm/s |
| OD of Roller | 120-170mm | Thread Length | (no limits) |
| BD of Roller | 54mm | Main Power | 4kw |
| Roller Width max | 100mm | Hydraulic Power | 2.2kw |
| Dip Angle of Main Shaft | ±5° | Weight | 1700kg |
| Center Distance of Main shaft | 120-240mm | Size | 1480×1330×1440mm |

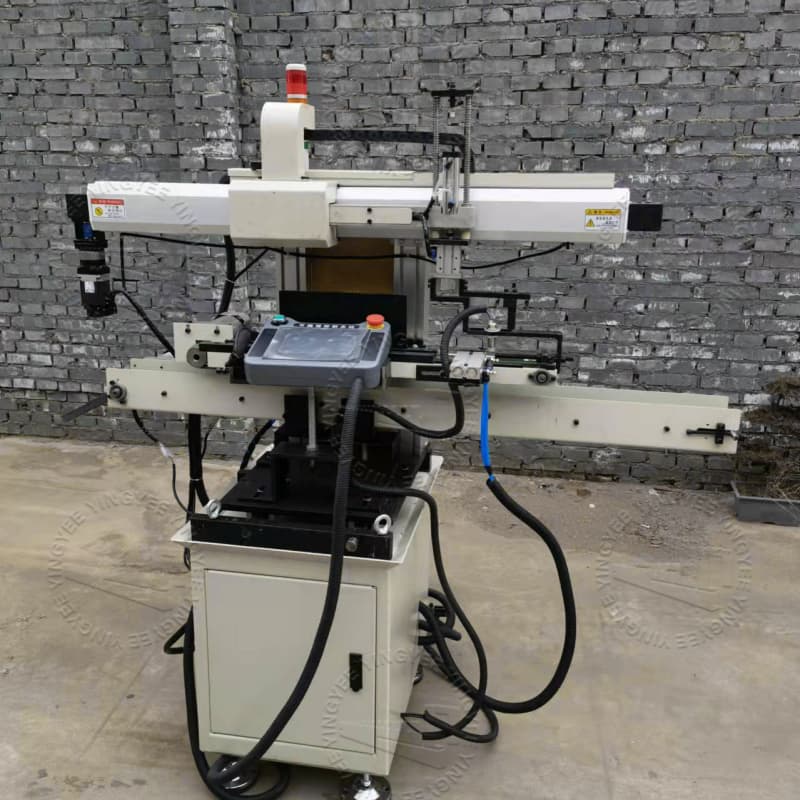

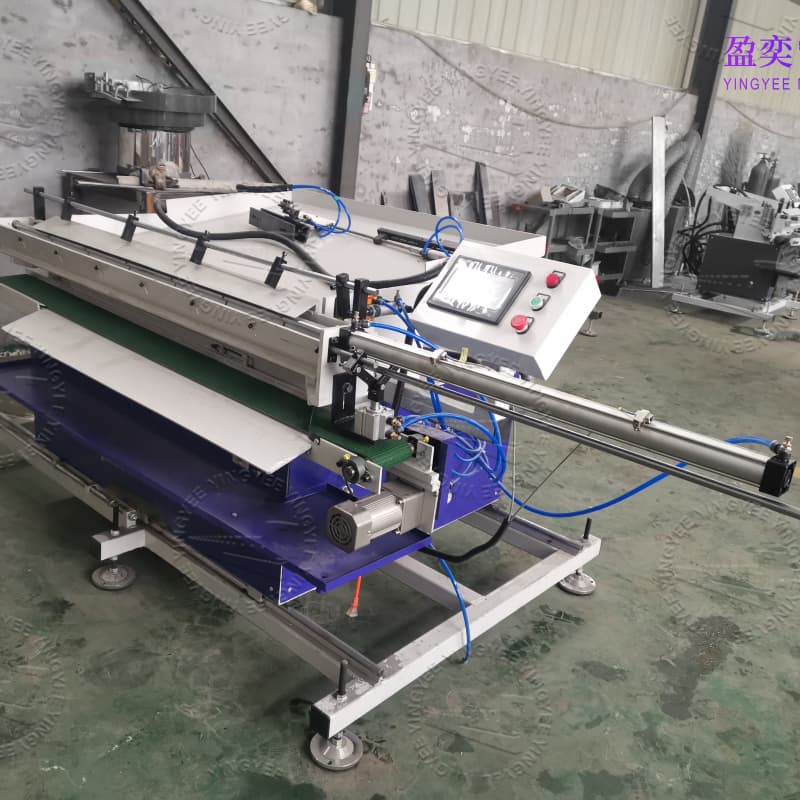

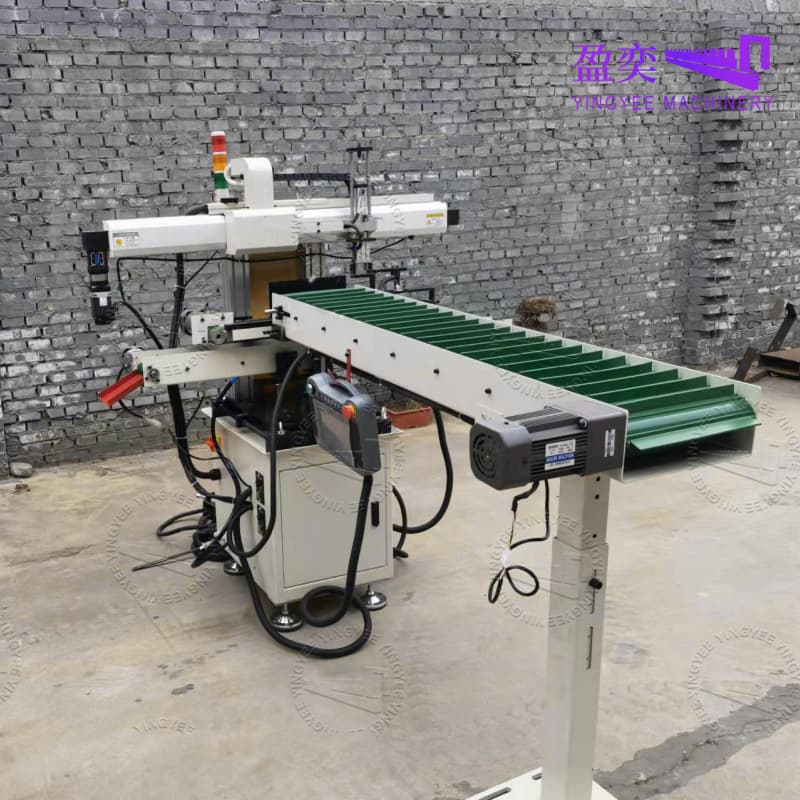

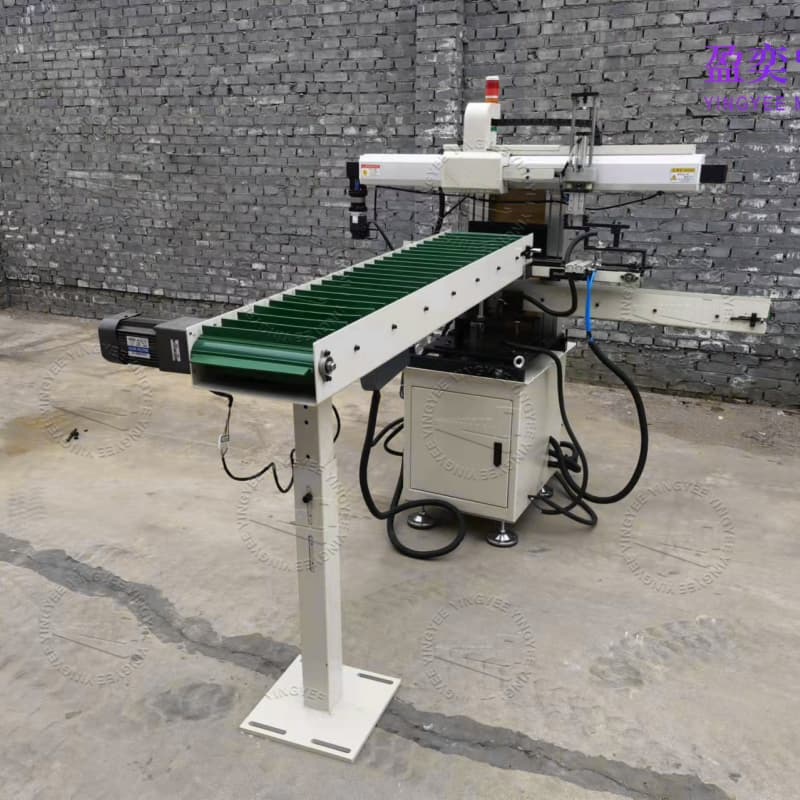

Pictures of machine:
