Hydraulic cutting factory price thread rolling machine
Short Description:
Basic Info
Warranty:12 Months
Delivery Time:30 Days
After Service:Engineers Available To Service Machinery Overseas
Voltage:380V/3Phase/50Hz Or At Your Request
Cutting Mode:Hydraulic
Material Of Cutting Blade:Cr12
Control System:PLC
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
HS Code:84552210
Port:Tianjin Xingang
Product Description
Thread Rolling Machine Model YY-630
This model mainly is used for various types of precision outer thread rolling, including the common thread, trapezoidal thread and modulus thread, workpiece to circular shape, straightening, rolling wrinkles, light and rolling work, Adapt rolling of material: elongation and tensile strength than 10% less than 1000N/mm² of various carbon steel, alloy steel and non-ferrous metal.
Technical parameters:
| Pressure of Roller max. | 630KN | Rotary Speed of Main Shaft | 8,14,21,33(r/min) |
| Working Dia | 120mm | Feed Speed of Movable shaft | 5mm/s |
| OD of Roller | 260mm | Thread Length | (no limits) |
| BD of Roller | 100mm | Rolling Power | 15kw |
| Roller Width max | 200mm | Hydraulic Power | 7.5kw |
| Dip Angle of Main Shaft | ±10° | Weight | 3000kg |
| Center Distance of Main shaft | 210-380mm | Size | 2100×2270×2330mm |

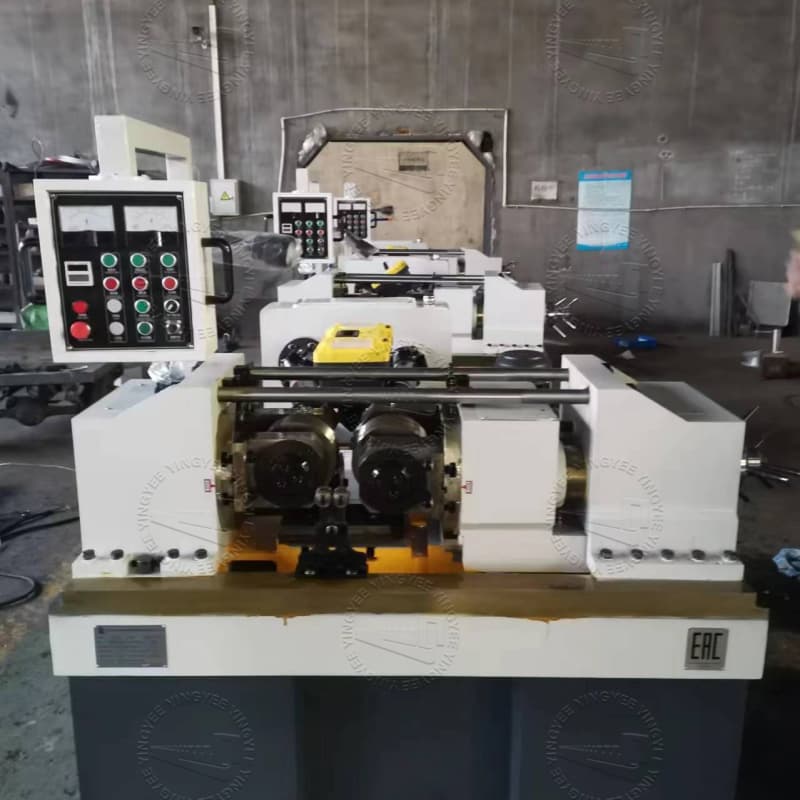

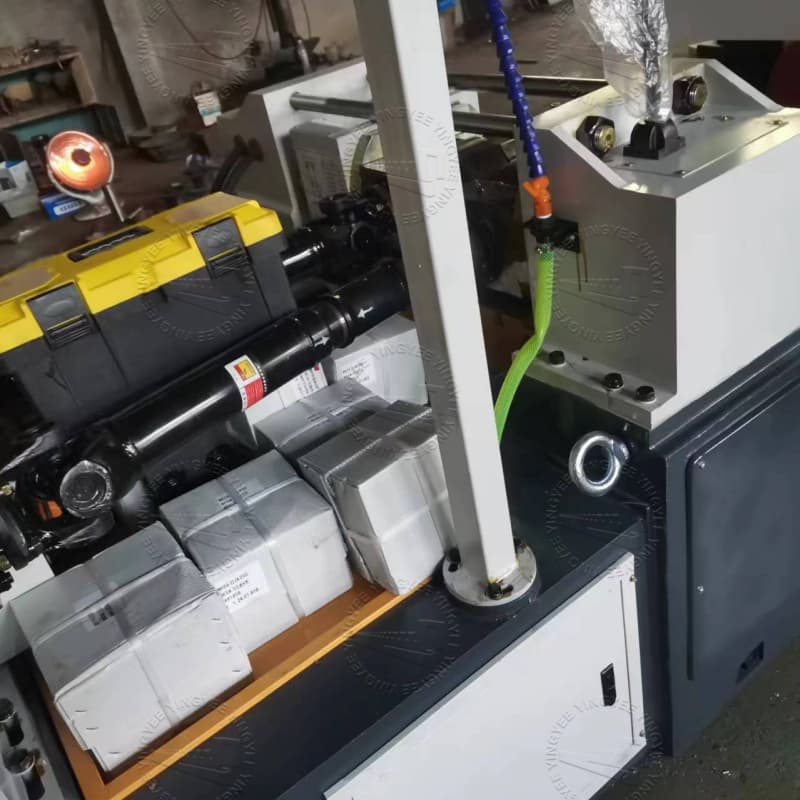

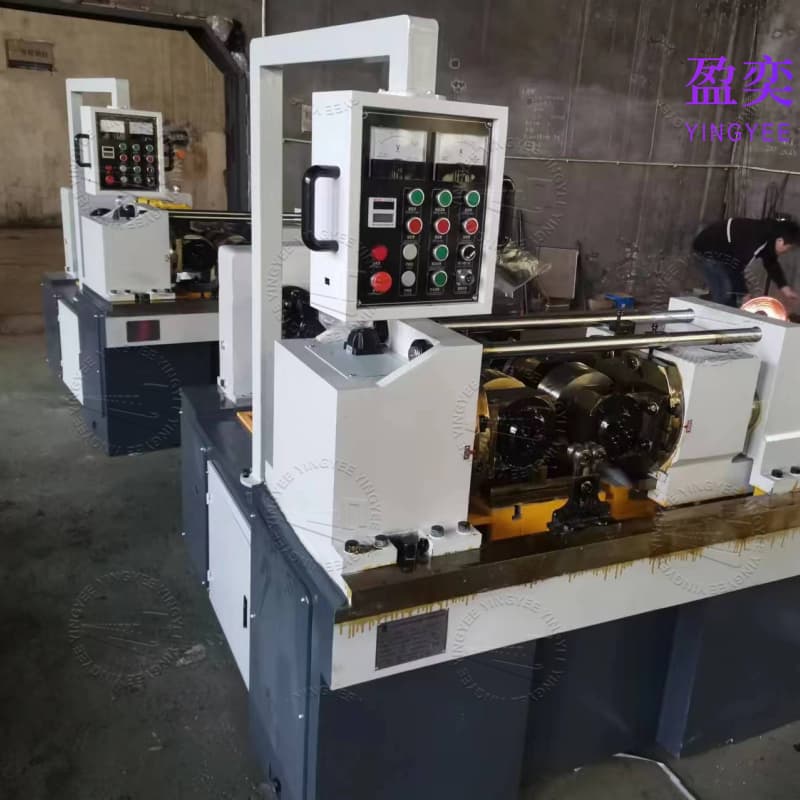

Pictures of machine:
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
