Galvanized standing seam roof panel machine
Short Description:
Basic Info
Control System:
PLC
Delivery Time:
30 Days
Warranty:
12 Months
Material Of Cutting Blade:
Cr12
Using:
Roof
Type:
Roof Sheet Roll Forming Machine
Cutting Mode:
Hydraulic
Material:
Colored Steel, Galvanized Steel, Aluminum Steel
Forming Speed:
15-20m/min
Voltage:
At Customer’s Request
Additional Info
Packaging:
NUDE
Productivity:
200 sets/year
Brand:
YY
Transportation:
Ocean
Place of Origin:
Hebei
Supply Ability:
200 sets/year
Certificate:
CE/ISO9001
Product Description
Standing seam roof panel roll forming machine
Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.
The colored steel tiles produced by this machine look beautiful ,elegant and noble. They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.
Working Flow:
Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Cutting – Output Table
Technical parameters:
| Raw material | Pre-painted coils, Galvanized coils, Aluminum coils |
| Material thickness range | 0.2-1mm |
| Rollers | 12-20 rows |
| Material of rollers | 45# steel with chromed |
| Shaft diameter and material | 70mm, material is 40 Cr |
| Forming speed | 10-15m/min |
| Material of cutter blade | Cr12 mould steel with quenched treatment 58-62℃ |
| Main motor power | 4KW |
| Hydraulic motor power | 3KW |
| Voltage | 380V/3Phase/5Hz |
| Total weight | about 3 tons |
| Controlling system | Omron PLC |

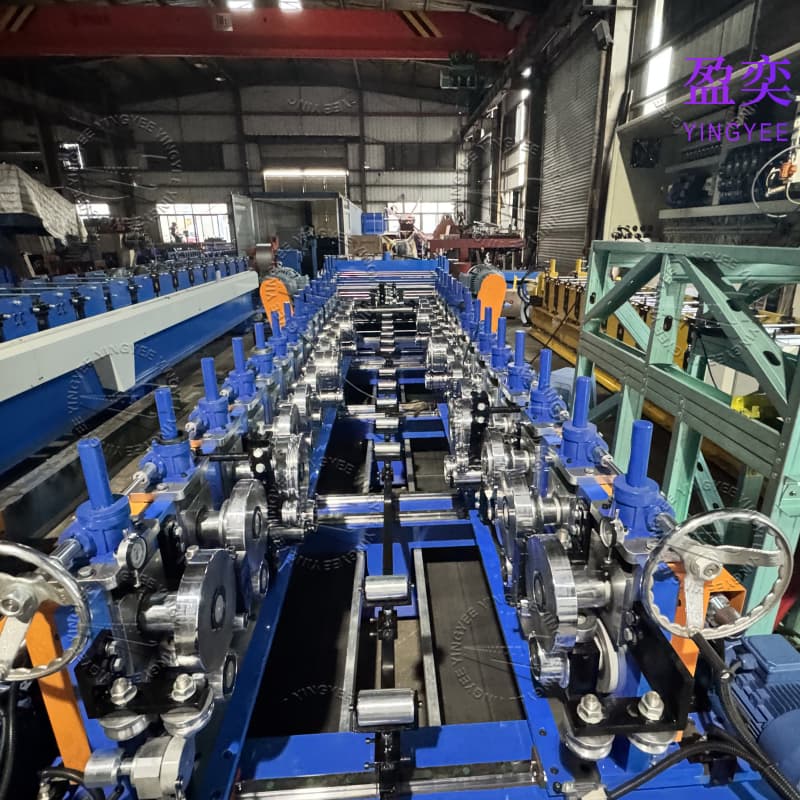

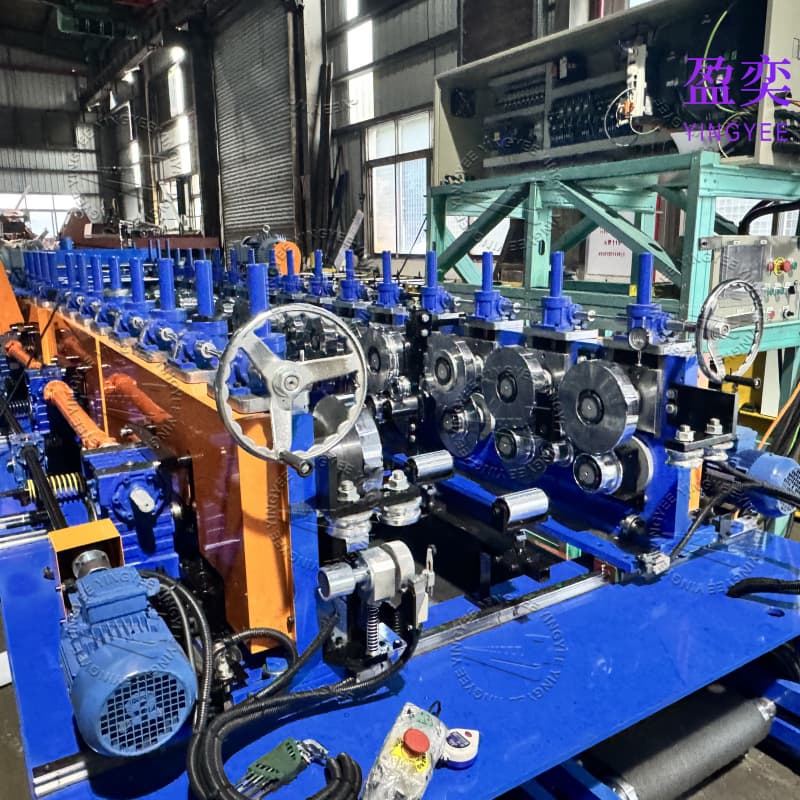

Pictures of machine:
Company information:
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.
Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :
- Roof roll forming machine
- Roller Shutter Door Roll Forming Machine
- C and Z purlin roll forming machine
- Downpipe Roll Forming Machine
- Light Keel Roll Forming Machine
- Shearing Machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
Looking for ideal Standing Seam Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Galvanized Steel Standing Seam Machine are quality guaranteed. We are China Origin Factory of Roof Panel Roll Forming Machine. If you have any question, please feel free to contact us.
