EPS Sandwich Panle Roll Forming Machine
Short Description:
Basic Info
Control System:PLC
Warranty:12 Months
Delivery Time:30 Days
Type:Roof Sheet Roll Forming Machine
Cutting Mode:Hydraulic
Material:Color Coated Steel, Galvanized Steel, Aluminum St
Way Of Driven:Chain Transmission
Voltage:As Customer’s Request
After Service:Engineers Available To Service Machinery Overseas
Forming Speed:4-6m/min
Additional Info
Packaging:NUDE
Productivity:200 sets/year
Brand:YY
Transportation:Ocean
Place of Origin:Hebei
Supply Ability:200 sets/year
Certificate:CE/ISO9001
Product Description
EPS Sandwich Panle Roll Forming Machine
- EPS type clip core board line can make compound board. The whole line is composed of uncoiler, main forming machine, cutting device and compound system (pressedrib, pasting, worming, compounding, turningedge, slotting, edging, pneumatic, autocutting).
Technical parameters:
| Panel width | 950, 970,1150mm |
| Panel thickness | 50-200mm |
| Raw material | Galvanized coils, Pre-painted coils, Aluminum coils |
| Material thickness range | 0.3-0.7mm |
| width | 1000mm, 1250mm |
| yield strength | 235Mpa |
| Max coil weight | 5000kgs |
| working speed | 0-5m/min (adjustable) |
| Total length | about 35m |
| Control mode | PLC |
| Total power | about 30kw |
| Electricty condition | 380v/3phase/50hz (or depend on custmers requirement) |
Working process:

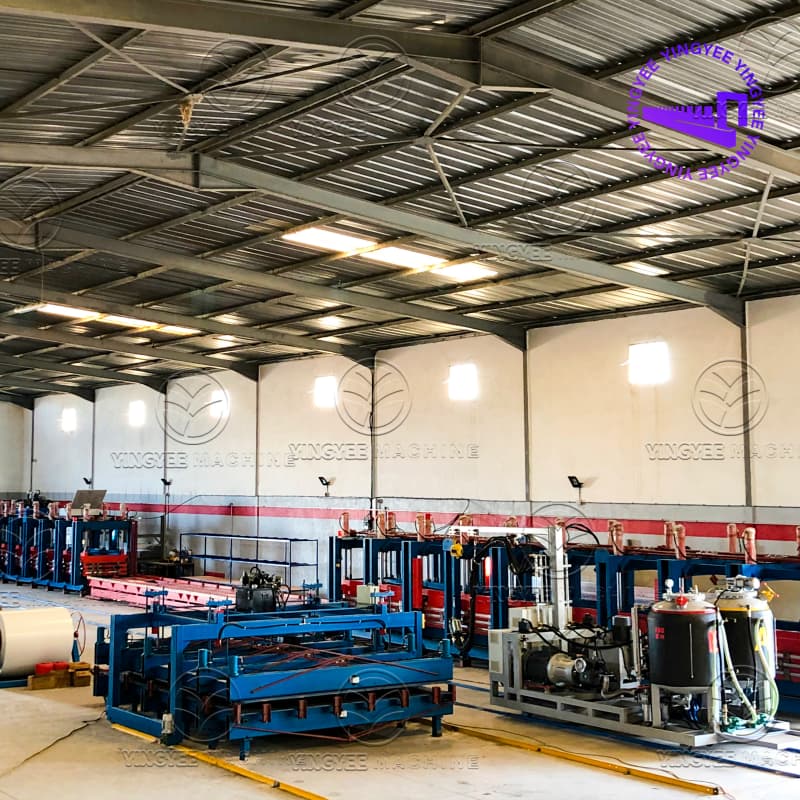

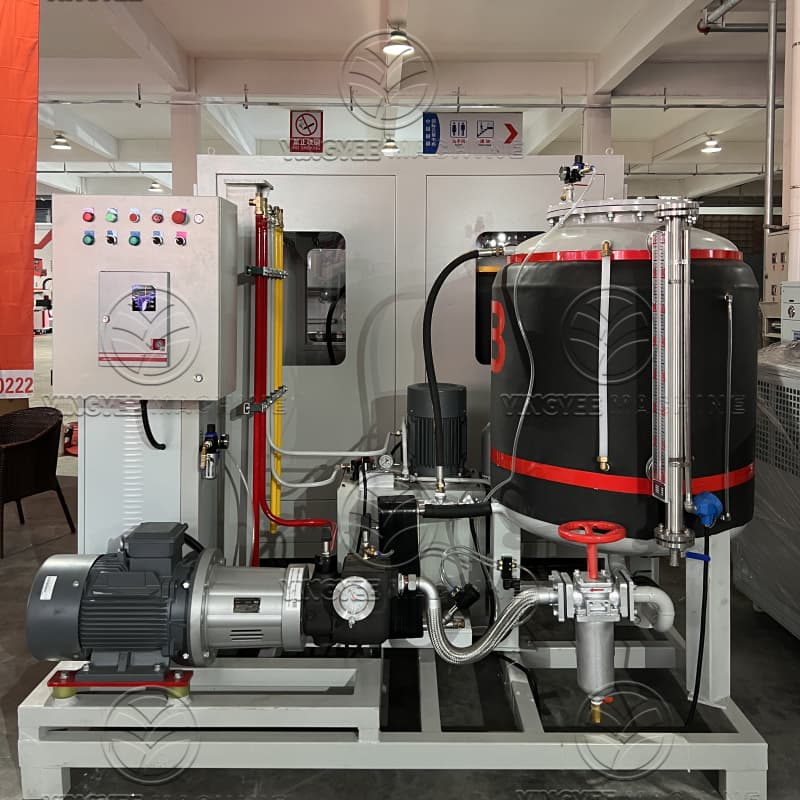

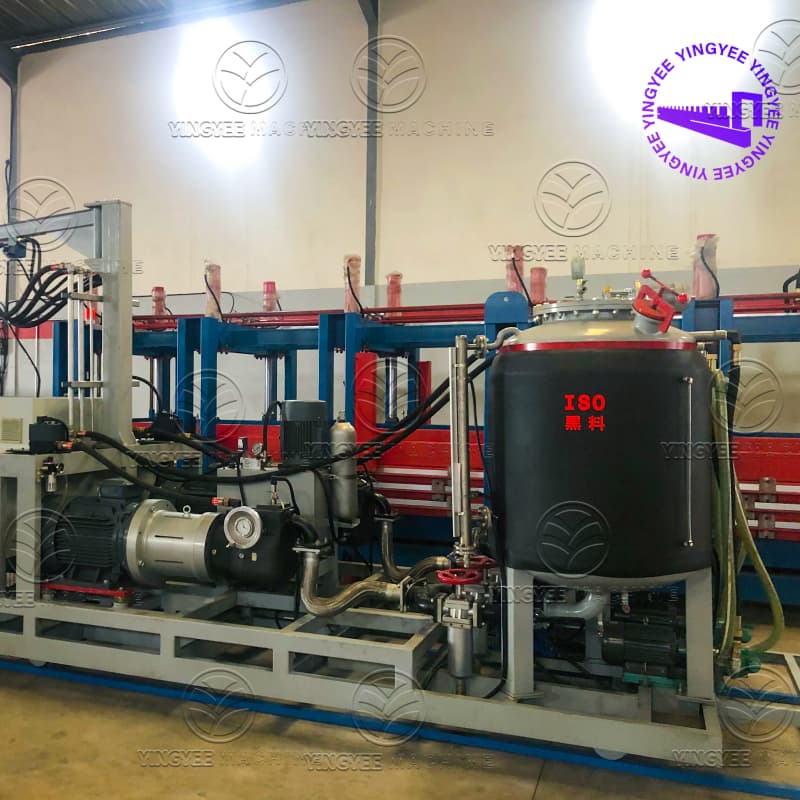

Pictures of machine:
FAQ:
Training and Installation :
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Looking for ideal Eps Sandwich Panel Production Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Factory Price EPS Sandwich Production Line are quality guaranteed. We are China Origin Factory of High Efficient EPS Sandwich Production Line. If you have any question, please feel free to contact us.
