Cut to length line cutting machine steel coil cut to length
Short Description:
cut to length line
machine design depends on different thickness and width.
the decoiler is hydraulic decoiler
10T with feeding trolley,12T with feeding trolley and support arm,16T with feeding trolley and support arm,press arm can choose.
whole line speed 50-60m/min
Technical Scheme of Cut to Length Production line
0.3-2*1300 cut to length line
1. Steel material: Galvanized Steel
2. Steel coil thickness: 0.3-2.0mm
3. Steel coil width: 500-1500mm
4. Max Steel coil weight: 10T
5. Steel coil I.D: 508-610mm
6. Steel coil O.D: ≤1500mm
7. line speed: 50-60m/min
8. Cutting speed:(as 1000*2000mm): 20-30 pieces/min
9. Shear length : 500-4000mm
10. Frame material: Q235
11. Voltage: 380V three-phase electricity 50Hz
12. Diagonal accuracy: ±1mm
13. Sizing accuracy: ±1mm
14. Total power: approx 70KW (Normal working power: 60KW)
15. Unit area: Approx 23m*6m ( according to the using)
16. Unwinding direction: left to right facing the console
Machine including

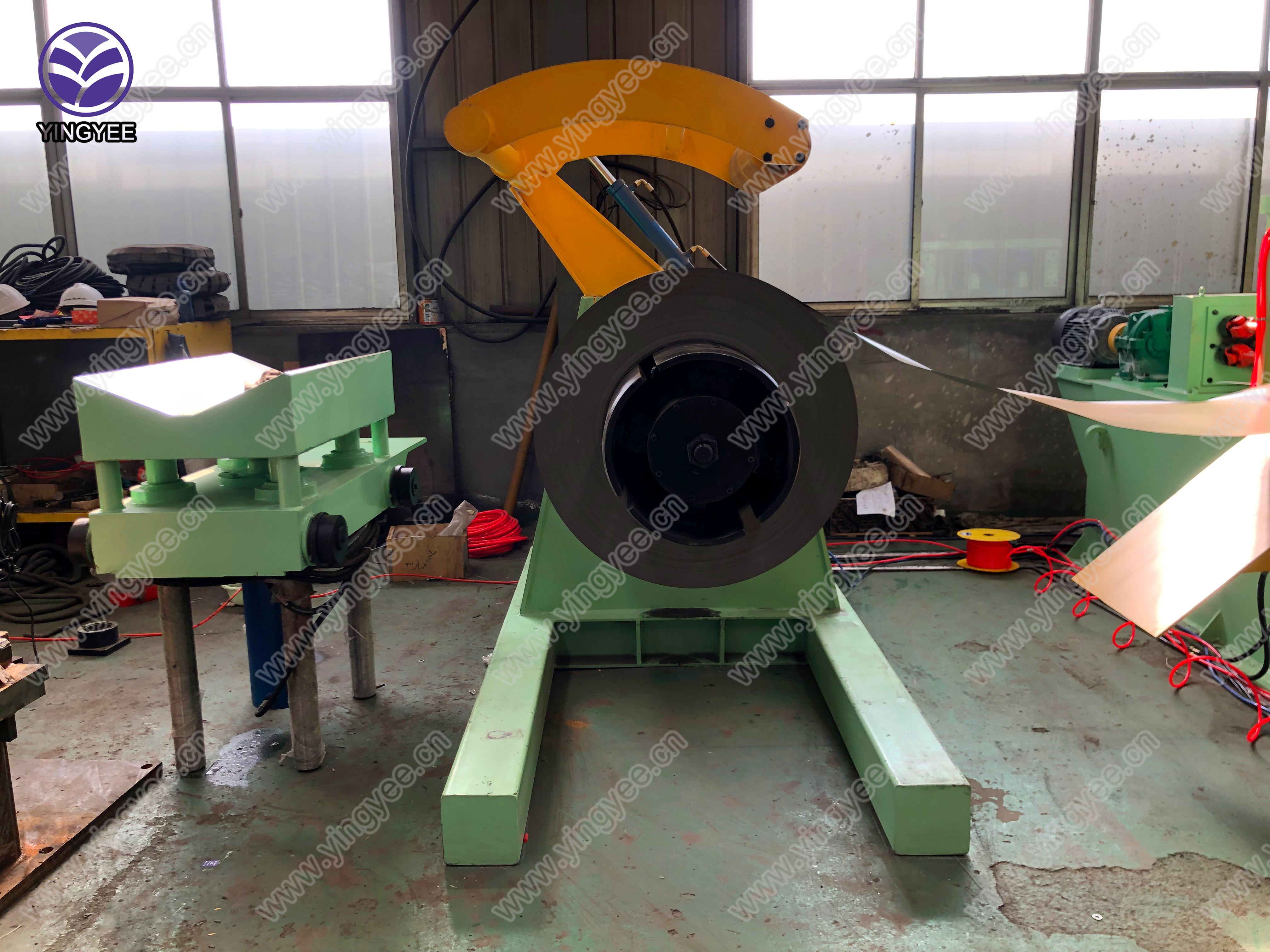

1. Hydraulic single arm de-coiler with hydraulic feeding trolley

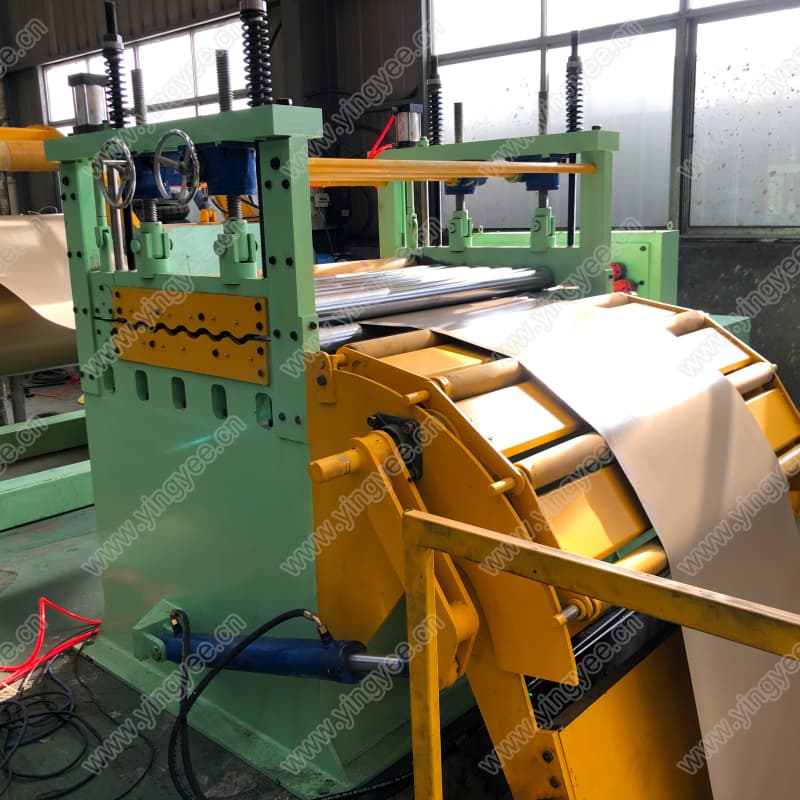

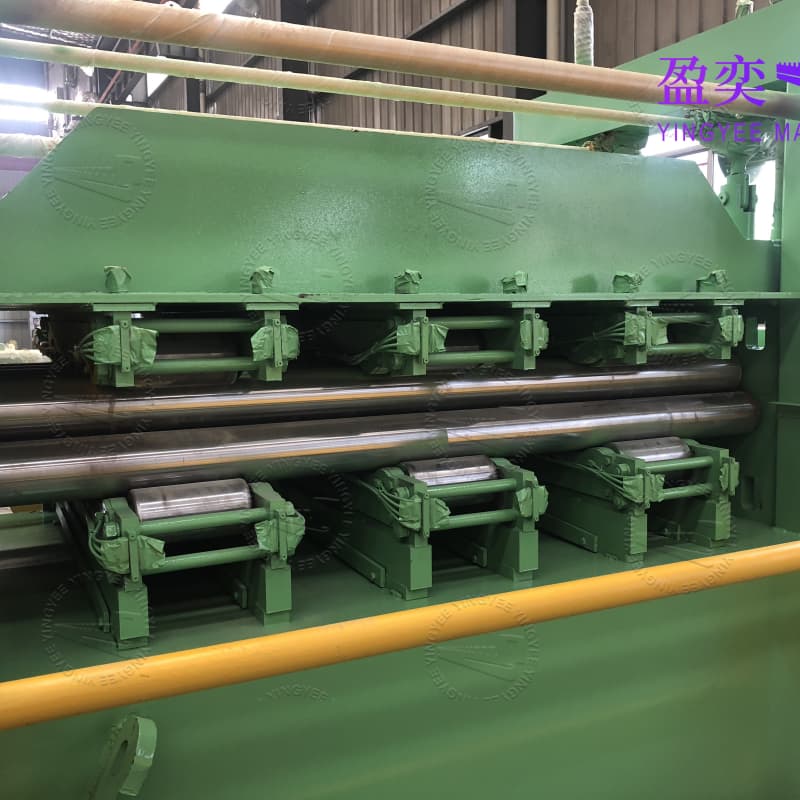

2. 15-axis dual-type precision leveling machine

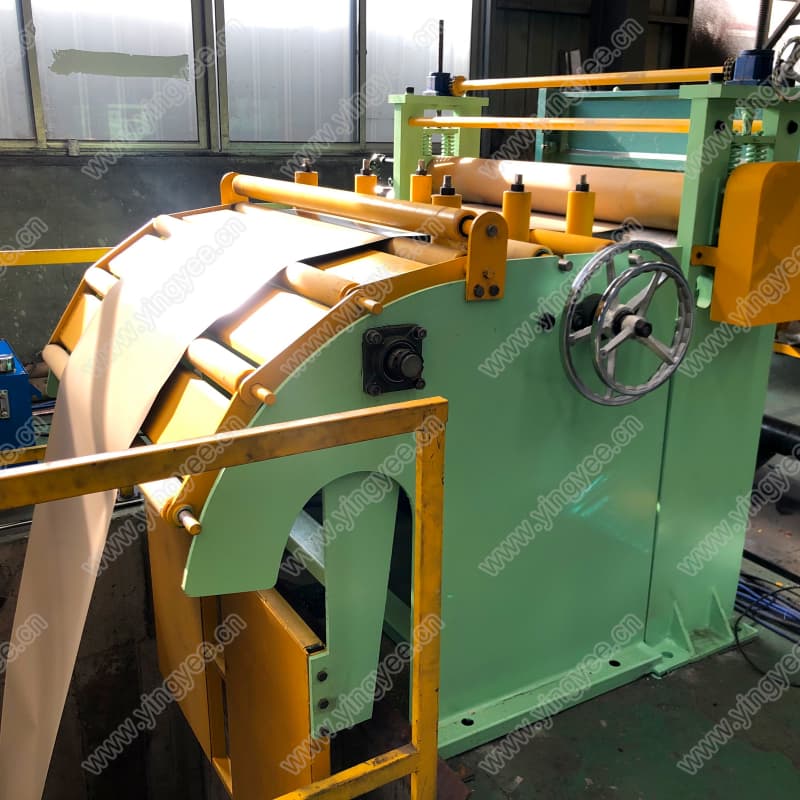

3. Correction device (including trench tray)
4. Nine-roller servo sizing machine

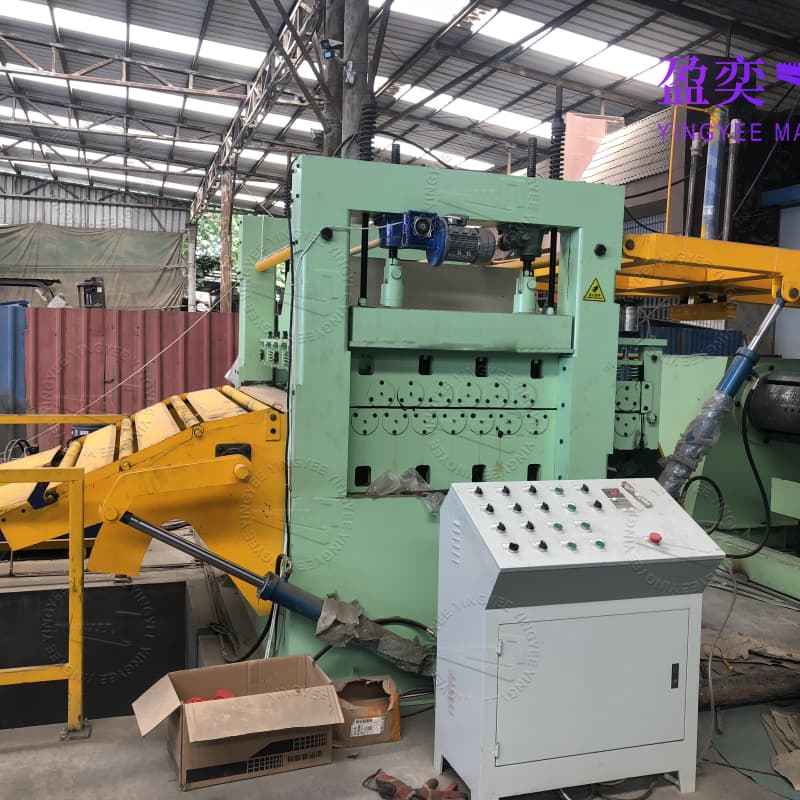

5. Shearing machine
6. Electronic control system
7. Conveyor
8. Lifting palletizer
9. 4000mm in front of discharge platform
10. Hydraulic station
11. Fan

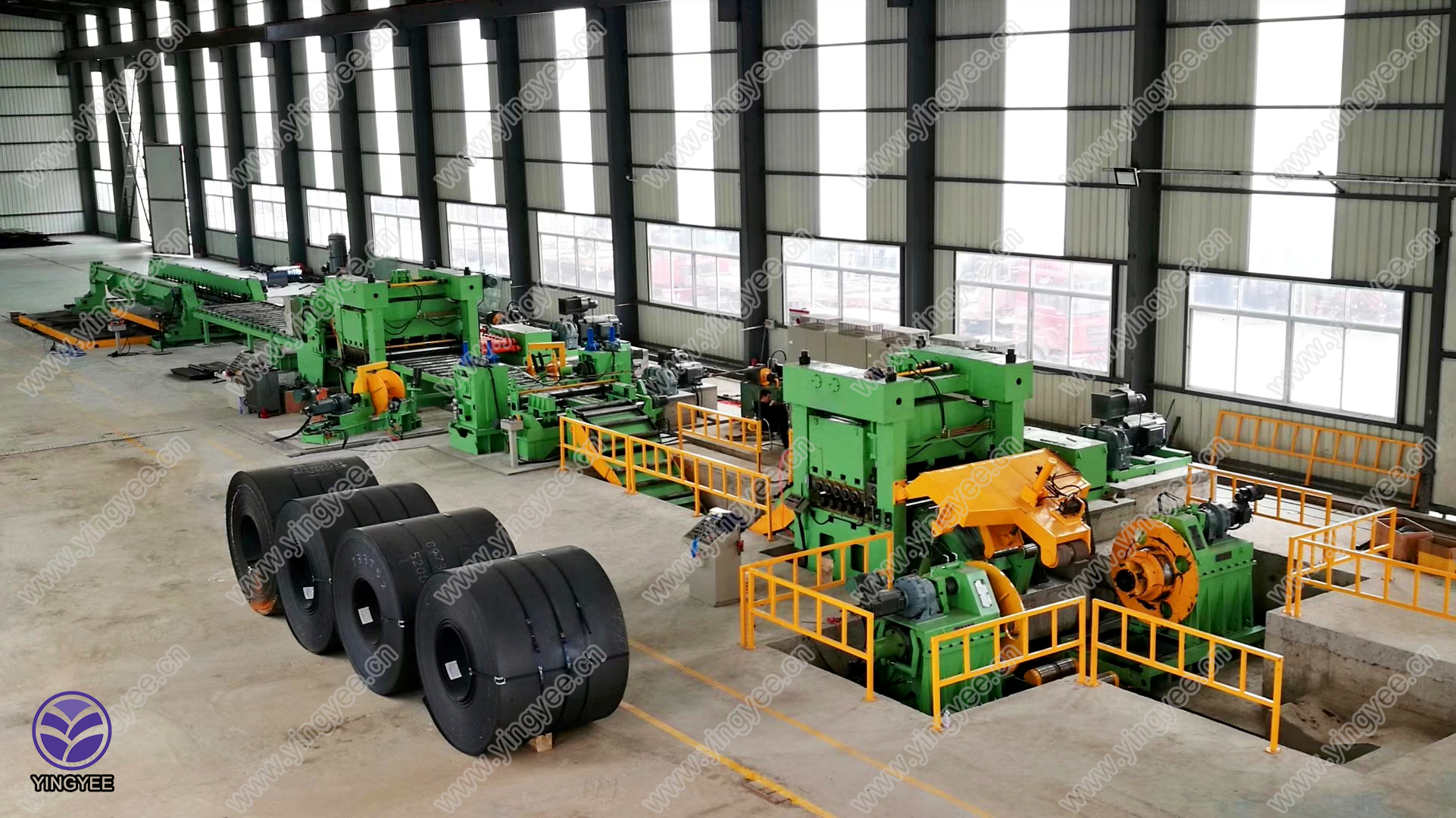

Overflow of the cut to length line
