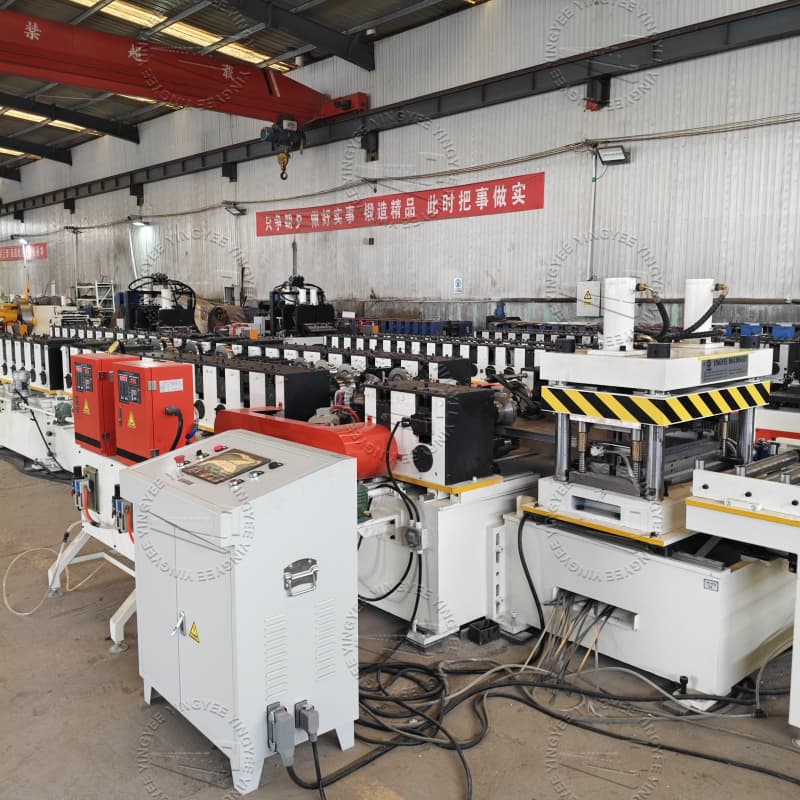

Back Panel & Deck Panel Roll Former – Optimized for Shelving Manufacturers
Short Description:
Basic production conditions of equipment
Equipment production conditions:
1 The equipment covers an area: 30×3×2 (length×width×height) meters.
2 Equipment feeding direction: left in and right out.
3 Voltage parameter 380, 50Hz, 3 phases.
4 Air source: the flow rate is 0.5m³/Min; the pressure is 0.7MPa.
5 Hydraulic oil: 46# hydraulic oil.
6 Gear oil: 18# hyperbolic gear oil.

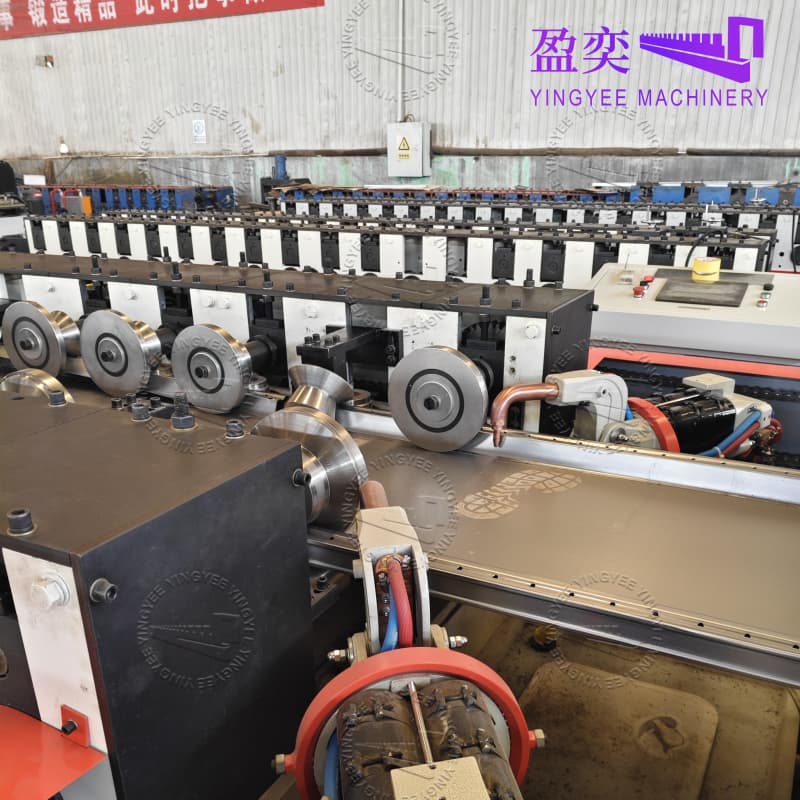

Main technical parameters of the equipment
1 Rolled strip width: ≤775mm
2 Rolled strip thickness: 0.6mm/0.9mm
3 Rolled strip material: cold-rolled steel strip yield limit σs≤260Mpa
4 Roll material: Cr12, quenched HRC56°-60°
5 Molding speed: 0~12m/min, online speed 0-6 M/min
6 Rolled workpiece length: user free setting
7 Total installed capacity of equipment: about 30KW.

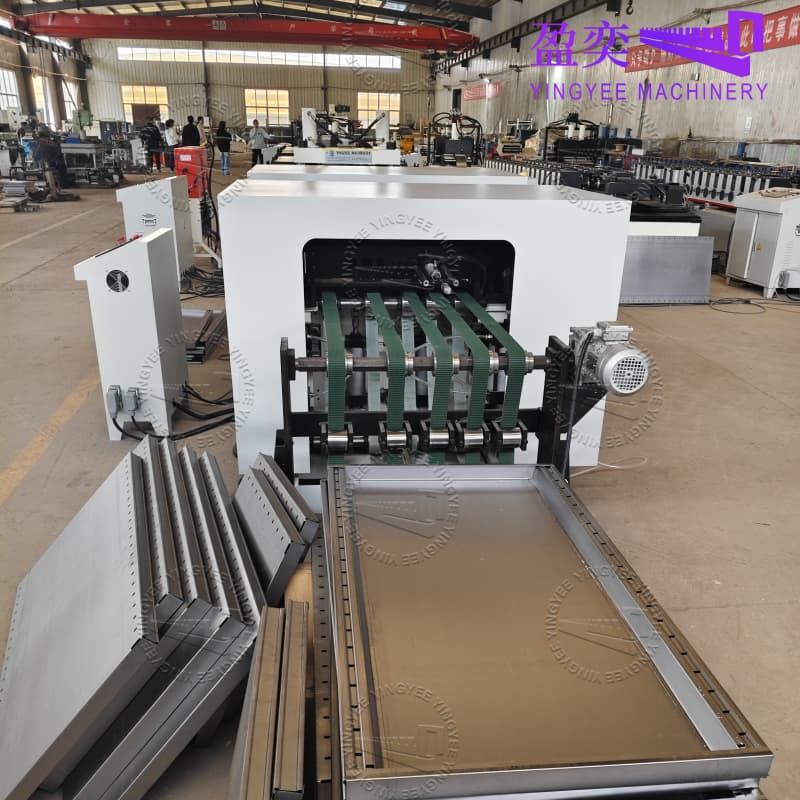

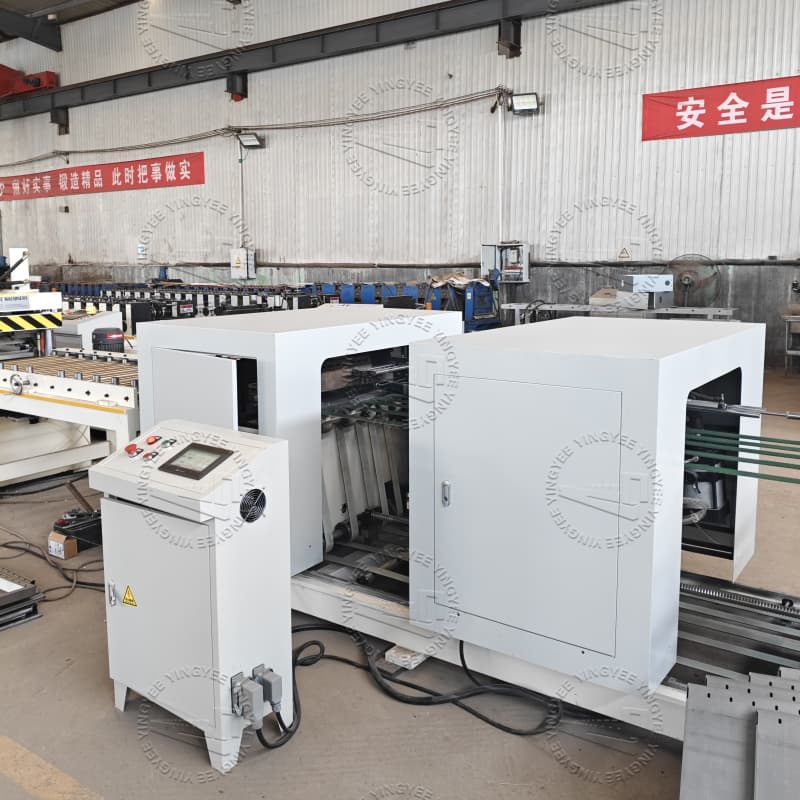

Processing:
Basic specification
| No. | Items | Spec: |
| 1 | Material | 1. Thickness: 0.6mm2. Input width: max. 462mm3. material: Cold rolled steel strip; yield limit σs≤260Mpa |
| 2 | Power supply | 380V, 60Hz, 3 phase |
| 3 | Capacity of power | 1. Total power: about 20kW2. Punchine system power: 7.5kw3. Roll forming machine power: 5.5kw
4. Track cutting machine power: 5kw |
| 4 | Speed | Line speed: 0-9m/min(includ punching)Forming speed: 0-12m/min |
| 5 | Hydraulic oil | 46# |
| 6 | Gear Oil | 18# Hyperbolic gear oil |
| 7 | Dimension | Approx.(L*W*H) 20m×2m×2m |
| 8 | Stands of rollers | Roll forming machine for Fundo 2F: 17 rollersOne Extra roller Fundo 1F: 12 rollers |
| 9 | Material of rollers | Cr12, quenched HRC56°-60° |
| 10 | Length of rolled workpiece | User free setting |
| 11 | Cut style | Hydraulic Tracking cut |
