Automatic Steel Coil cutting Machine Metal Sheet Leveling & Cut to Length Line

Cut to length line/ steel plate cutting

1. Equipment specifications and main technical parameters

1.1 Production line specifications 0.4-3.0×1250mm

1.2 Uncoiling width range 500-1500mm

1.3 Material thickness 0.4-3.0mm

1.4 Frame material Q235

1.5 Maximum roll weight 10T

1.6 Inner diameter of steel coil 508-610mm

1.7 Outer diameter of steel coil ≤1700mm

1.8 Production line speed 55-58m/min

1.9 Cutting frequency 25-28 sheets (1000×2000mm shall prevail)

1.10 Cutting length range 500-6000mm

1.11 Sizing accuracy ±0.5/mm

1.12 Diagonal accuracy ±0.5/mm

1.13 Total power ≈85kw (normal working power 75kw)

1.14 Unwinding direction facing the console from left to right

1.15 Unit area ≈25m×6.0m (used as standard)

1.16 power supply 380v/50hz/3 phase（or customized)

2. Equipmentcomponent

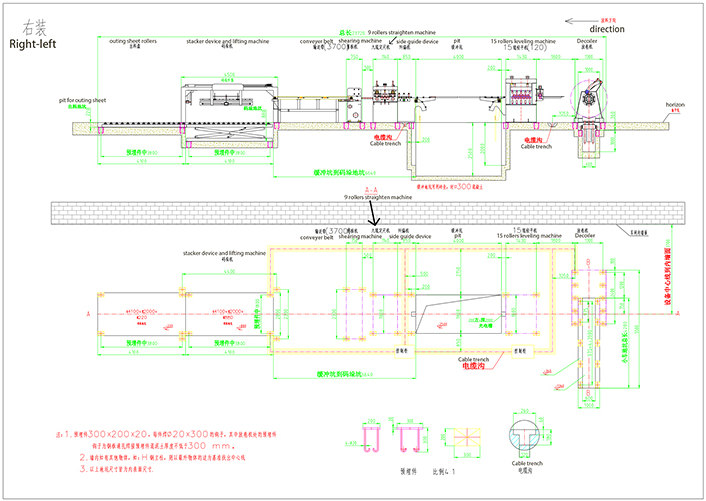

Layout
