Equipment overview:
1.The production line adopts new components, each component use high quality material, assorted machine, hydraulic system and electrical control system use advanced and reliable brand.
2 The roll forming craft is made by the special Germany cold roll forming program COPRA; the craft is also made the FEA analysis and check. The roller surface has been fine finished; make sure the profile is smooth.
Technical parameters:
| Serial number | Item | Unit | Parameters | Remark | |
| 1 | Suitable material | Type | pre-painted steel coil Q235 | ||
| strength | MPa | ≤350 | |||
| Thickness | mm | 0.5-0.6mm | |||
| Coil internal diameter | mm | 500,600 | |||
| Coil weight | T | 10 | |||
| 2 | Specification | mm | 120 | ||
| 3 | Line speed | m/min | 4 | ||
| 4 | Roller material | 45# steel, with hard chrome on surface, polishing | |||

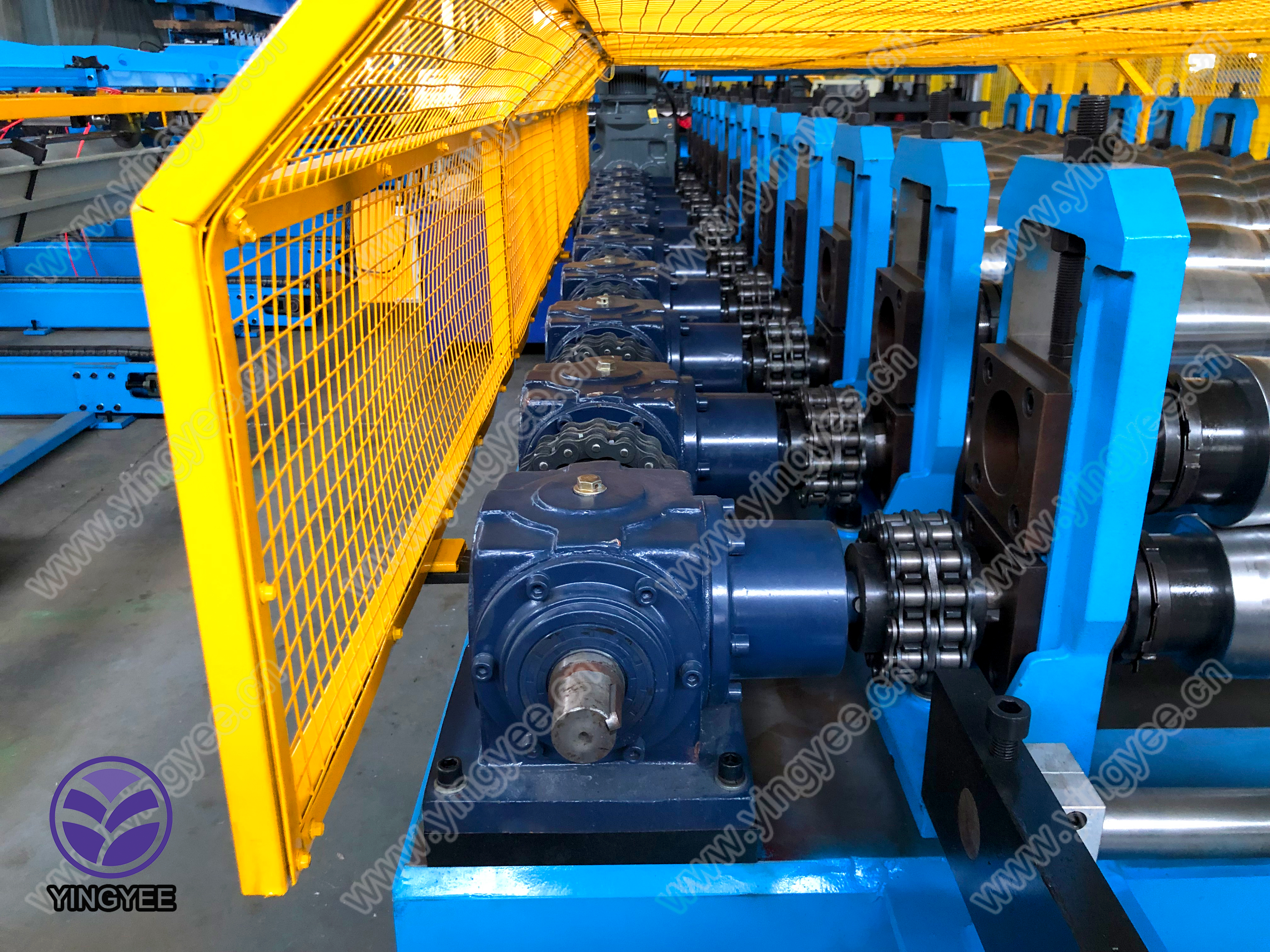

| 5 | Roller driven type | External chain transmission | |||
| 6 | Operating system | Windows2000 | |||
| 7 | Total motor power | Kw | 7.5 | ||
| 8 | Power supply | PLC automatic control system | |||
| 9 | Dimension(L*W*H) | m |
|
||
Post time: Oct-21-2022
