1.Decoiler
Bearing :5T / 7.5T / 10T
Speed of uncoiling :0–12m/min(adjustable)
Inner diameter of coiler : Ø508 , Ø610mm
Outer diameter of coil:≤1200mm
Max. width of coil:≤1250
Thickness of steel plate:0.27~0.8mm
Power :≥3KW

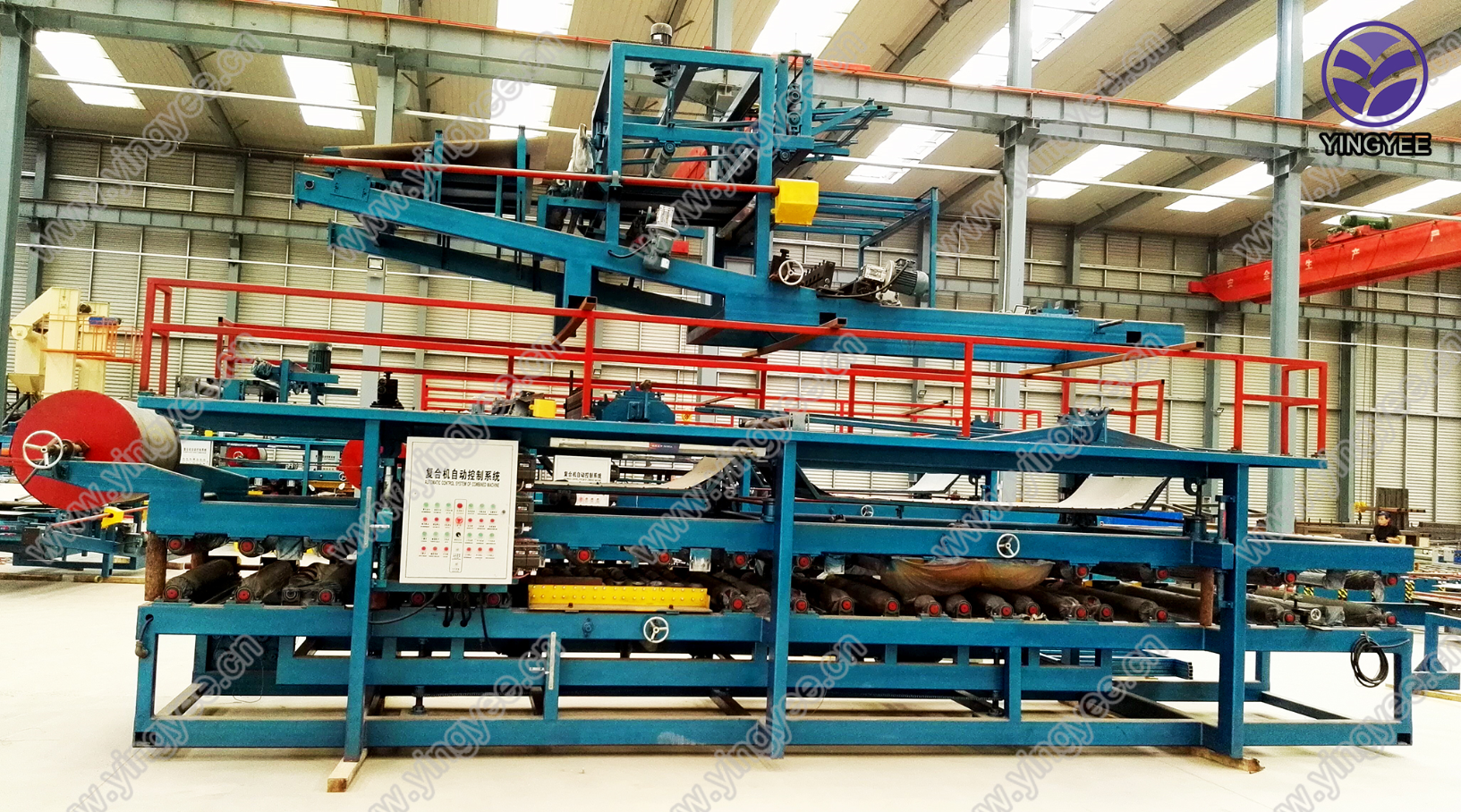

2.Roll forming machine
Items
Parameter
Speed of roll forming machine
0-12m/min(stepless)
Main motor power
7.5kw
Power of rib roll forming machine
3kw
Material of forming roller
40Cr, Chrome-plated high hardness alloy steel
Diameter of forming roller
φ50mm
Steps of forming
check details of different panel drawing as following
Adjustment range
600-1250mm
Suitable thickness of steel sheet
0.2—0.8mm
